Using Laurel to ease auditd log's Ingestion

Description

LAUREL is an event post-processing plugin for auditd(8) that generates useful, enriched JSON-based audit logs suitable for modern security monitoring setups.

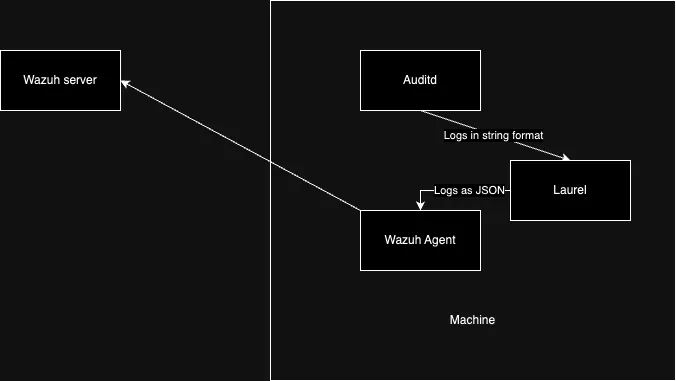

Basic Flow

alt text

Steps Overview

On the VM/physical Machine:
- Installing Laurel
- Configure Laurel
- Modify wazuh config to monitor Laurel logs instead of Auditd logs
On the Wazuh Server:
- Implement Rules and decoder for Laurel in wazuh

Steps in Detail

1. Installation

Download the latest version of laurel from Releases · threathunters-io/laurel, there are multiple versions in accordance to the architecture of the vm/machine.

After which extract and install using the following commands:

tar xzf laurel-$FLAVOR.tar.gz laurel
sudo install -m755 laurel /usr/local/sbin/laurel

2. Setup and configure Laurel

So, following the official documentation our following steps should be:

Create a dedicated user

sudo useradd --system --home-dir /var/log/laurel --create-home _laurel

Add /etc/laurel/config.toml, the file that controls laurel

Add the following config for optimal working:

directory = "/var/log/laurel"
user = "_laurel"
statusreport-period = 0
input = "stdin"

[auditlog]
file = "audit.log"
# Rotate when log file reaches this size (in bytes)
size = 5000000
# When rotating, keep this number of generations around
generations = 10




# [filterlog]
# # If filter.filter-action is set to "log", filtered events are
# # written to this log. It is configured just like [auditlog].
# file = "filtered.log"
# size = 1000000
# generations = 3
# read-users = [ "splunk" ]

[transform]

# to convert the arguments from a string to array

execve-argv = [ "array" ]

# execve-argv-limit-bytes = 10000

[translate]
# this section is to
# arch, syscall, sockaddr structures
universal = true
# UID, GID values
user-db = true
# Drop raw (numeric) syscall, arch, UID, GID values if they are translated
drop-raw = true

[enrich]

# Add context (event-id, comm, exe, ppid) for *pid entries
pid = true

# List of environment variables to log for every EXECVE event
execve-env = [ "LD_PRELOAD", "LD_LIBRARY_PATH" ]

# Add container context to SYSCALL-based events
container = true

# Add script context to SYSCALL execve events
script = true

# Add groups that the user (uid) is a member of. Default: true
user-groups = true

[label-process]

# Audit records that contain certain keys can be reused as a label
# attached to the process.
#
# This is useful in combination with audit rules such as:
# -w <path> -p x -k <key>
# e.g.: -w /usr/bin/dpkg -p x -k software_mgmt
label-keys = [ "software_mgmt" ]

# Labels can be attached to or removed from processes that run certain
# programs. The file program file path (SYSCALL.exe or /proc/pid/exe)
# is matched against regular expressions. This is useful for programs
# that cannot be identified through auditd file watches (-w <path> -p
# x -k <key>).
label-exe.'^/opt/.*/bin/java$' = 'java'
label-exe.'^/usr/lib/jvm/.*/bin/java$' = 'java'
label-exe.'^/snap/amazon-ssm-agent/\d+/' = 'amazon-ssm-agent'

unlabel-exe."bin/php$" = "java"

# Labels can be attached to or removed from processes that have been identified as
# scripts.
label-script."^/root/maint-.*[.]sh$" = "maint"

# unlabel-script."…" = "maint"

# Process Labels can be propagated to spawned child processes. This is
# useful for marking an entire subtree of children that have been
# spawned within certain contexts (e.g. system management tools,
# container runtimes, ssh servers, cron, etc.).
propagate-labels = [ "software_mgmt", "amazon-ssm-agent" ]

[filter]

# When audit records with attached keys are being generated,
# LAUREL will discard these.

# filter-keys = ["filter-this"]

# In addition to key based filtering it is also possible to configure label based
# filtering. This alows the possibility to filter based on parent processes.

# filter-labels = ["software_mgmt"]

# Filter events without specified key

filter-null-keys = false

# Filter events that were constructed from input lines matching these
# regular expressions
# filter-raw-lines = [
#     "^type=PATH msg=\\S*? item=\\S*? name=\"/var/run/nscd[.]sock\" "
# ]

# Keep the first event observed for any given process even if it would
# be filtered otherwise. This should only be turned off if
# reproducible process tracking or process tree reconstruction is not
# required.
# keep-first-per-processes = true

# What to do with filtered events? "drop" or "log" to the filterlog
# defined above.
filter-action = "drop"

  active = yes
  direction = out
  type = always
  format = string
  path = /usr/local/sbin/laurel
  args = --config /etc/laurel/config.toml

Restart AuditD by the following:
```
sudo pkill -HUP auditd
```

3. Configure wazuh agent to retrieve laurel logs instead of auditd logs

We need to add the following lines to wazuh agent’s ossec.conf (which is located in /var/ossec/etc/ossec.conf and will require sudo), will expain what it does in a min

<ossec_config>
  <localfile>
    <log_format>json</log_format>
    <location>/var/log/laurel/auth.json</location><!-- the location specified in /etc/laurel/config.toml as directory-->
  </localfile>
</ossec_config>

The addition is simple
- <log_format> specifies the format of the logs present in laruel’s logfile,
- <location> specifies the location of the logfile to be read
Restart wazuh agent by running
```
sudo systemctl restart wazuh-agent
```
Work done on agent side, on to the server.

4. Configure decoders and rules for Laurel/auditd logs

Since Laurel Logs are proper JSON Logs, no need to write a decoder, just start with a base rule and build on top of it.

The following is the base rule i wrote, it can be changed according to necessity

<group name="local,auditd,">

  <rule id="100002" level="2">
       <decoded_as>json</decoded_as>
       <field name="SYSCALL.SYSCALL">execve</field>
      <description>Auditd syscall base_rule</description>
      <group>audit_command,syscall,laurel,</group>
  </rule>
...
</group>

You can build on top of this rule as per requirement, enjoy.
